The Water Heater Overflow Pipe: Why It's Leaking and How to Fix

A dripping water heater overflow pipe is one of the most common and most misunderstood plumbing issues in homes. That small pipe running from the side or top of your tank is not a drain for convenience. It is a safety discharge line tied to the temperature and pressure relief valve(T&P valve). When water comes out of it, the system is telling you something is wrong with pressure, temperature, or thermal expansion.

The good news is that most overflow-pipe leaks can be diagnosed methodically and corrected before they become floor damage, tank failure, or a costly emergency. This guide explains why the pipe leaks, how to tell the difference between a one-time discharge and an ongoing problem, and what to do next—without guesswork.

What the Overflow Pipe Actually Does

Every storage water heater is required to have a T&P relief valve. That valve is designed to open if water inside the tank exceeds safe temperature (typically around 210°F) or pressure (usually 150 psi). When it opens, hot water is directed through the overflow pipe (also called the discharge pipe) to a safe location—often near the floor, to a drain, or outside.

A properly functioning system should not drip from this pipe during normal use. Occasional discharge after a long shower or during peak heating can happen in some closed plumbing systems, but continuous dripping, pooling water, or repeated discharge is a warning sign.

Ignoring it can lead to:

• Water damage around the tank
• Mineral buildup that prevents the valve from reseating
• Reduced tank life
• In rare cases, a dangerous pressure buildup if the valve is blocked or capped

Never cap, plug, or reduce the overflow pipe. That defeats a critical safety device.

Why Overflow Pipes Leak: The Three Main Causes

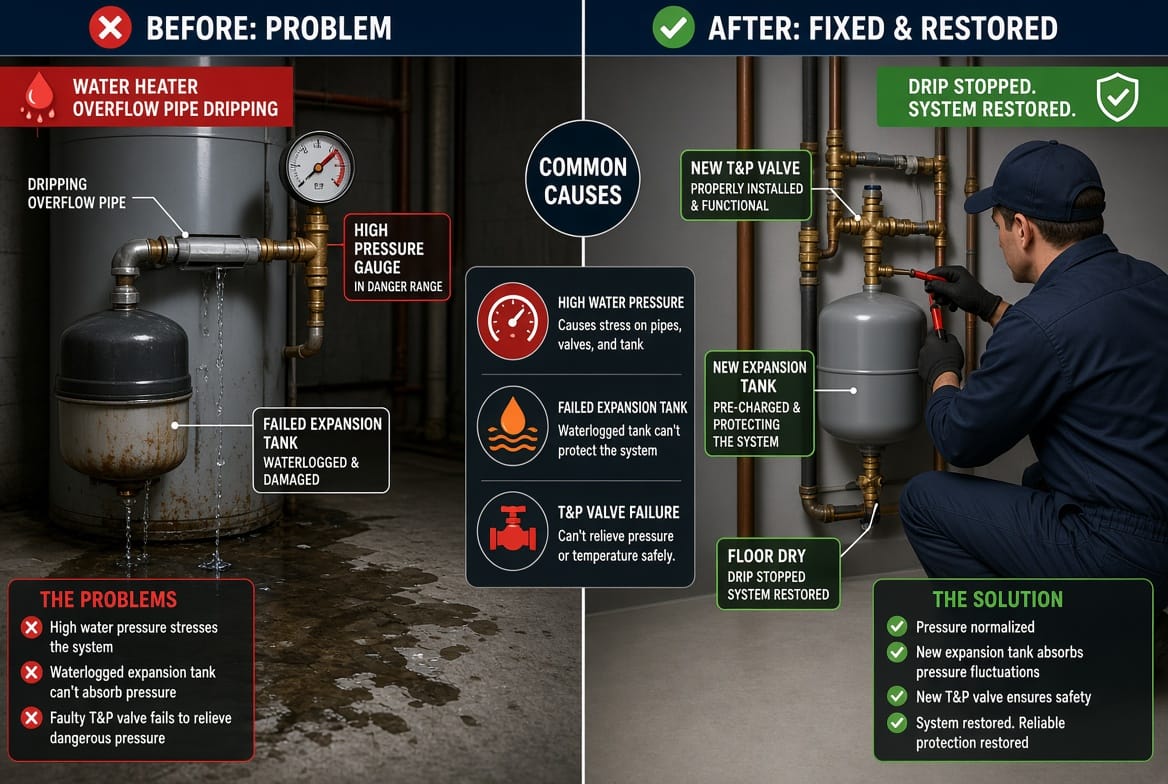

Most leaks from the overflow pipe trace back to one of three related problems: the T&P valve opening, expansion tank failure, or overpressure in the system. These often overlap.

1. The T&P Valve Is Opening (or Failing to Reseat)

The valve may open because conditions inside the tank truly exceeded its rating—or because the valve itself is worn, dirty, or stuck.

Normal discharge can occur when:

• Water is heated rapidly and has nowhere to expand
• Incoming water pressure is already high
• The home has a closed system (check valve, pressure-reducing valve, or backflow preventer) with no working expansion tank

Problematic discharge happens when:

• The valve drips even after the tank has cooled
• Water leaks from the valve body, not just the pipe
• Sediment or mineral scale keeps the valve from sealing
• The valve is old and the spring or seat is worn

A leaking T&P valve is both a symptom and a risk. Once it starts dripping regularly, minerals can lock it in a partially open position.

2. Expansion Tank Failure

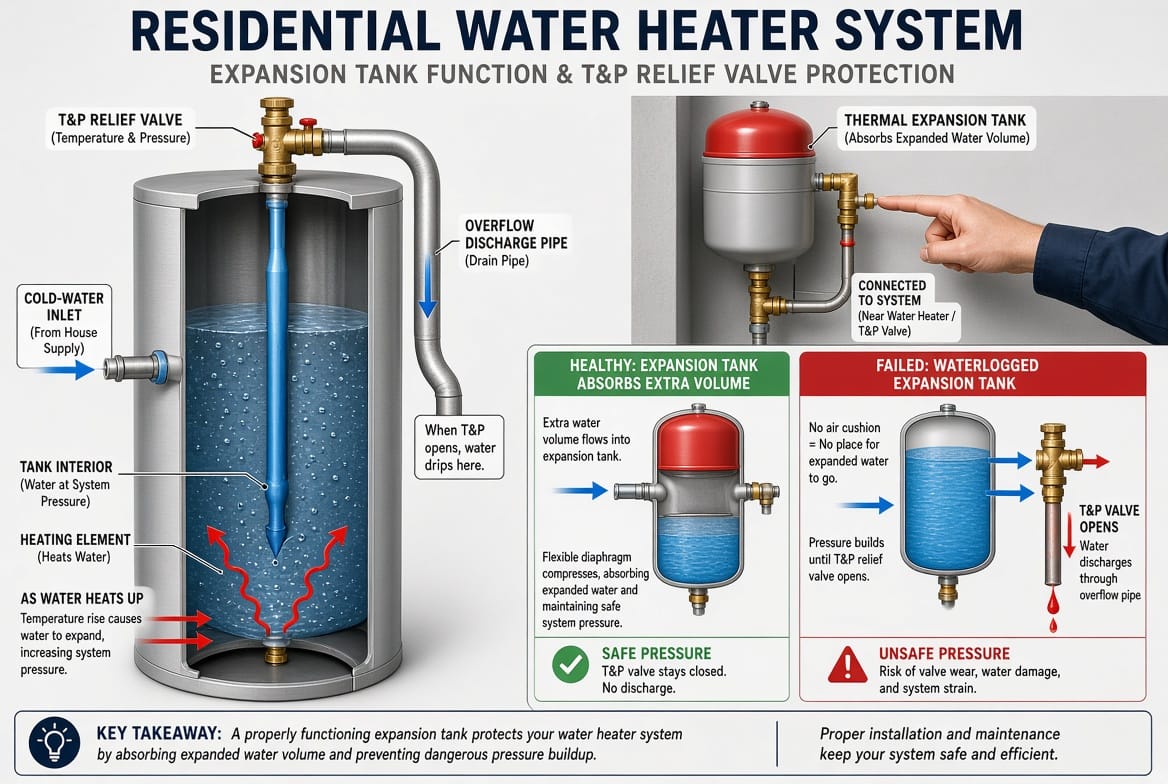

In many modern homes, a thermal expansion tank is installed on the cold-water line near the heater. As water heats, it expands. In an open system that water can push back toward the street. In a closed system, pressure rises inside the tank unless the expansion tank absorbs the extra volume.

A failed expansion tank commonly looks like this:

• The tank is waterlogged (the air bladder has collapsed)
• The pre-charge air pressure is too low or too high
• The tank is undersized for the water heater
• The tank was never installed after a check valve or PRV was added

When the expansion tank cannot do its job, pressure spikes during every heating cycle. The T&P valve becomes the only relief path—and the overflow pipe starts dripping.

This is one of the most frequent “mystery drip” causes. The overflow pipe is blamed, but the real problem is thermal expansion with no buffer.

3. Overpressure From the Supply or Heating Cycle

High incoming water pressureis another major driver. Municipal or well systems that deliver 80 psi or more put the heater closer to its relief point before heating even begins. Add thermal expansion and the T&P valve opens.

Overpressure can come from:

• A missing or failed pressure-reducing valve (PRV)
• A PRV set too high
• Thermal expansion in a closed loop
• A heating element or gas control that is overheating water
• Restricted piping that creates localized pressure spikes

Risk to remember:Repeated high pressure does not only leak from the overflow pipe. It stresses fittings, the tank lining, and the T&P valve itself.

Other contributing issues include excessive thermostat settings, a failing heating element that overheats water, or a tank that is heavily sedimented so heat transfer is uneven. These are less common as the primary cause but should be checked during diagnosis.

How to Diagnose a Leaking Overflow Pipe

Diagnosis should be calm, systematic, and safety-first. You are dealing with hot water and pressure.

Safety notes before you start

• Do not stand directly over the T&P valve when testing it.
• Assume discharged water can be scalding.
• If the tank is making unusual noises, the pipe is steaming heavily, or pressure feels extreme, stop and call a professional.
• Never close or block the discharge pipe to “stop the leak.”

Step 1: Confirm the source

Look closely:

• Is water coming from the overflow pipe outlet?
• Is it leaking from the T&P valve threads or valve body?
• Is there a separate leak from the tank drain, inlet/outlet connections, or the tank itself?

A pipe that is wet only at the end usually means the valve opened. Water at the valve-to-tank connection may mean a bad gasket or loose fitting.

Step 2: Check how often it discharges

• A brief drip after heavy hot-water use points toward thermal expansion.
• A steady drip all day points toward a failed valve, chronically high pressure, or a valve that will not reseat.
• Discharge that happens even when the heater is off for hours often means incoming pressure or a valve problem, not just heating expansion.

Place a dry pan under the pipe and note timing. This simple observation is surprisingly useful.

Step 3: Measure water pressure

Attach a pressure gauge to an outdoor hose bib or laundry faucet.

• Ideal residential pressure is often in the 40–60 psi range.
• Many codes and manufacturers treat 80 psi as a practical upper limit.
• Readings above that, especially 90–100+ psi, strongly suggest a PRV issue or no pressure regulation.

Check pressure when no water is running and again after the heater has been on. A significant rise after heating is a classic sign of thermal expansion in a closed system.

Step 4: Inspect the expansion tank

If your home has one:

• Tap it. A healthy tank often sounds hollow on the air side and dull on the water side.
• Check the Schraeder valve (like a tire valve) on the tank. A short burst of air is expected; a stream of water means the bladder has failed.
• Compare the tank’s air pre-charge to the static cold-water pressure. They should be close when the system is depressurized according to manufacturer instructions.

No expansion tank in a home with a check valve, backflow preventer, or PRV is a very common root cause.

Step 5: Evaluate the T&P valve

Some valves have a test lever. If you are comfortable and the pipe is properly routed:

• Lift the lever briefly and let it snap back.
• Water should discharge and then stop cleanly.

If it continues to drip after the test, the valve may be dirty or defective. Do not repeatedly exercise an old valve unless you are prepared for it to keep leaking—testing can reveal a valve that was barely holding.

Step 6: Check temperature

Setpoint that is too high increases pressure and scald risk. Many households do well around 120°F. Higher settings increase expansion and stress.

Also look for signs the heater is overheating: water that is much hotter than the dial suggests, or a valve that discharges with little recent hot-water use.

How to Fix the Problem

The correct fix depends on the diagnosis. Treating only the dripping pipe almost never solves the underlying issue.

Fix high incoming pressure

If static pressure is too high:

• Have a pressure-reducing valve installed or serviced
• Adjust an existing PRV to a safer setting
• Recheck pressure after adjustment and after a heating cycle

This protects the water heater and the rest of the plumbing.

Repair or replace a failed expansion tank

If the tank is waterlogged or incorrectly charged:

• Replace the expansion tank
• Set the pre-charge to match cold static pressure before connecting it to the system
• Confirm the tank is sized for the water heater and the closed-system conditions

A new expansion tank often stops overflow-pipe dripping immediately in homes that only leak during recovery.

Replace a faulty T&P valve

If the valve will not reseat, leaks at the body, or is old:

• Drain the tank to a safe level
• Remove the old valve
• Install a new valve with the correct pressure/temperature rating and thread size
• Use proper pipe dope or tape rated for the application
• Reinstall a full-size, unobstructed discharge pipe that terminates safely

Important: Replacing the valve without correcting pressure or expansion often means the new valve will leak too.

Address overheating and sediment

• Lower the thermostat if it is set too high
• Flush the tank if sediment is heavy
• Have gas controls or electric elements checked if water is overheating

Sediment does not always cause overflow leaks, but it can contribute to uneven heating and valve wear.

Correct poor discharge-pipe installation

The overflow pipe should:

• Be the same diameter as the valve outlet
• Slope downward
• Remain unthreaded at the outlet if code requires an air gap
• Terminate where discharge is visible and will not scald someone

A pipe that runs uphill, is reduced in size, or is hidden can create additional problems and hide an active leak.

Prevention: Keep the Overflow Pipe Dry

Once the leak is stopped, a few habits reduce the chance it returns:

• Test or inspect the T&P valve on the schedule your manufacturer recommends, or have it checked during yearly service
• Flush the tank periodically to limit sediment
• Keep the thermostat at a safe, moderate setting
• Have pressure checked if you add a backflow preventer, PRV, or whole-house treatment system
• Replace aging expansion tanks before they fail completely
• Do not ignore a “small drip.” Small drips become mineral-crusted valves

A dry overflow pipe is a sign the system is balanced. A wet one is a sign the safety valve is doing work it should not have to do every day.

When Professional Service Is the Smartest Move

Some homeowners can check pressure and look at an expansion tank. Many repairs, however, involve hot tanks, tight spaces, correct valve ratings, local code, and the risk of scalding water. Call a professional if:

• You are unsure whether the tank is overheating
• Pressure is high and you do not have a PRV
• The T&P valve is discharging forcefully
• There is rust, pooling water, or signs of tank failure
• The heater is in a finished area where a mistake means major damage
• The valve was previously leaking and a simple replacement did not last

A qualified technician can measure pressure through a heating cycle, verify expansion-tank charge, replace the T&P valve correctly, and confirm the overflow pipe meets code. That is how you stop the leak at the source instead of wiping the floor every week.

The Bottom Line

A leaking water heater overflow pipe is rarely “just a drip.” It is usually the visible result of a T&P valve opening, an expansion tank that can no longer absorb thermal expansion, or overpressure in the system. Diagnose the pattern, measure pressure, inspect the expansion tank, and only then replace parts. Fix the cause and the pipe should stay dry.
