The HVAC Refrigerant Sight Glass: Monitoring for Moisture and Charge

A properly functioning HVAC system depends on precise refrigerant management. Among the most valuable yet often overlooked diagnostic tools available to technicians is the refrigerant sight glass. This simple device provides an immediate visual window into the condition of the refrigerant circulating through the system. By revealing the presence of moisture, inadequate charge, or other contaminants, the sight glass allows professionals to identify problems early and restore reliable cooling or heating performance.

Understanding how the sight glass works and what its visual cues mean empowers both homeowners and service teams to maintain system integrity. This article explores the function of the sight glass, the warning signs it displays, and the professional methods used to interpret those signs for accurate diagnosis and correction.

What Exactly Is a Refrigerant Sight Glass?

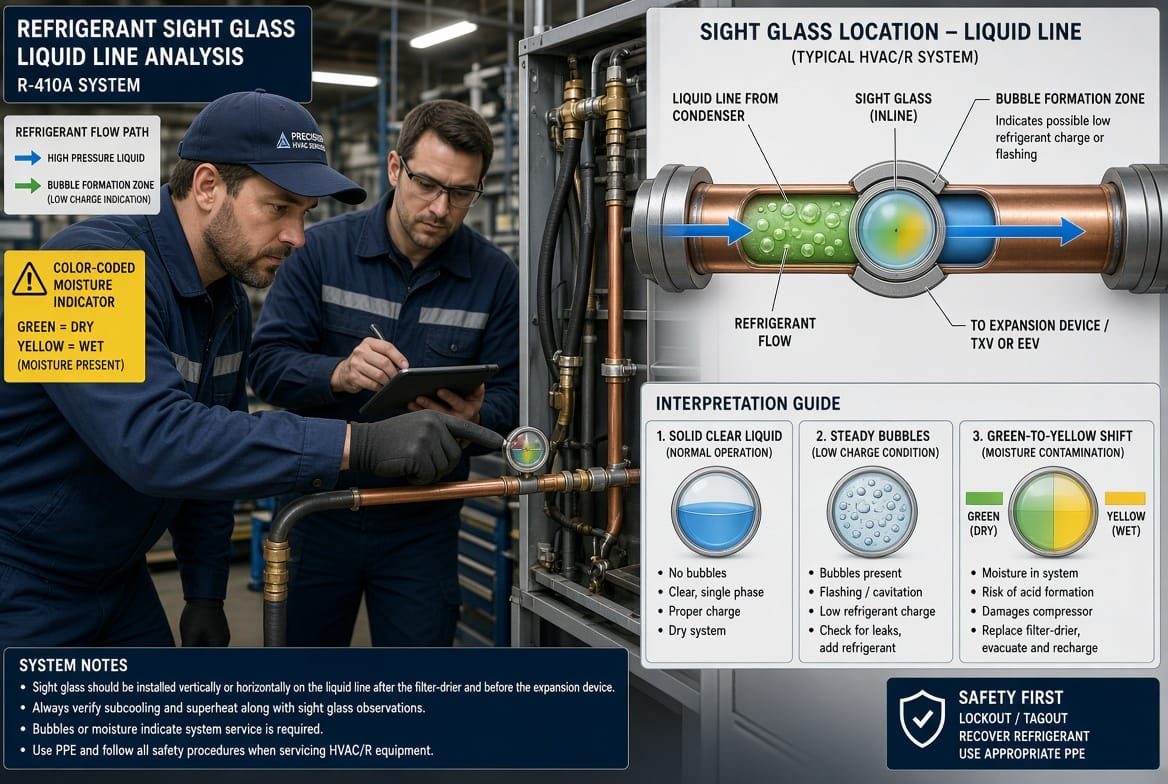

The refrigerant sight glass is a small transparent fitting installed in the liquid line of an air-conditioning or heat-pump system. Positioned after the filter-drier and before the expansion device, it allows technicians to observe the refrigerant as it flows under operating pressure.

Under ideal conditions the glass shows a solid, bubble-free stream of liquid refrigerant. Any deviation from that clear, continuous flow signals a potential issue. Because the device is passive and requires no external power, it remains a reliable, real-time indicator throughout the life of the equipment.

Modern sight glasses often incorporate a moisture indicator element—a chemically treated paper or crystal that changes color when water vapor is present. This dual-function design makes the sight glass indispensable for both charge verification and moisture detection.

Why Moisture and Proper Charge Matter

Refrigerant must remain pure and correctly measured for the system to transfer heat efficiently. Even small amounts of moisture can freeze at the expansion valve, restricting flow and causing the evaporator to starve. Moisture also reacts with refrigerant and lubricant to form corrosive acids that attack compressor windings and metal components.

An incorrect charge—whether undercharged or overcharged—alters pressures, reduces capacity, and forces the compressor to work harder. Over time these stresses shorten equipment life and drive up energy costs. The sight glass gives technicians an immediate, non-invasive way to confirm that both moisture and charge levels remain within safe operating ranges.

Visual Signs the Sight Glass Reveals

Technicians rely on three primary visual indicators when reading a sight glass:

• Bubbles or foam – Continuous bubbles usually indicate an undercharge. Intermittent bubbles that appear only during certain load conditions may signal a restriction or a marginally low charge.
• Color change of the moisture indicator – A shift from the normal reference color (often green or blue) toward yellow, pink, or purple signals the presence of moisture.
• Cloudy or hazy appearance – Oil contamination or severe moisture can produce a milky look, pointing to deeper system problems.

These cues, when combined with pressure readings and temperature measurements, form a complete diagnostic picture.

How Professionals Install and Position the Sight Glass

Correct placement is essential. The sight glass must sit in the liquid line downstream of the filter-drier so that any moisture captured by the drier does not reach the glass until the drier becomes saturated. Horizontal orientation is preferred to prevent liquid from pooling and creating false readings.

When a system lacks a factory-installed sight glass, technicians can add a serviceable model during major repairs or component replacements. The fitting is brazed or flared into the line with care to avoid introducing contaminants. Once installed, the glass becomes a permanent diagnostic port that future service calls can reference in seconds.

Step-by-Step Diagnostic Process Using the Sight Glass

Experienced technicians follow a structured approach:

1. Verify system operation – Run the unit in cooling mode long enough for pressures and temperatures to stabilize.
2. Observe the glass under full load – Look for a solid column of liquid. Any continuous bubbling warrants further investigation.
3. Check the moisture indicator – Compare the current color against the manufacturer’s chart printed on the glass body or in the service literature.
4. Correlate with gauge readings – Low suction pressure combined with bubbles often confirms undercharge. High head pressure with a clear glass may point to overcharge or airflow restriction.
5. Inspect related components – If moisture is indicated, examine the filter-drier for saturation, check for previous moisture-related failures, and consider a full system flush if acid is suspected.
6. Document findings – Record the appearance, color, and operating conditions so trends can be tracked over successive visits.

This methodical process turns a simple visual check into a precise diagnostic tool.

Common System Problems Detected by the Sight Glass

Low Refrigerant Charge

A steady stream of bubbles is the classic sign of low charge. Causes include slow leaks at fittings, valve stems, or evaporator coils. Technicians locate the leak with electronic detectors or UV dye, repair the source, evacuate the system, and weigh in the exact factory charge. After repair the sight glass should return to a solid, bubble-free state.

Moisture Contamination

A color shift on the moisture indicator alerts the technician that water has entered the system—often through improper evacuation or an open line during previous service. The corrective sequence includes replacing the filter-drier, performing a deep vacuum, and verifying that the indicator returns to its dry color after several hours of operation.

Acid Formation

When moisture reacts with refrigerant and oil, acid forms. Some advanced sight glasses include an acid-sensitive element that turns yellow. Acid attacks compressor motors and can lead to catastrophic failure. In such cases the technician may recommend an acid-neutralizing flush, compressor replacement if damage is confirmed, and installation of an oversized filter-drier for ongoing protection.

Restriction or Blockage

Occasional bubbles that clear when the system is off can indicate a partial restriction upstream of the glass. The restriction may be a clogged filter-drier, a kinked line, or debris at the expansion device. Clearing the restriction restores solid liquid flow.

Best Practices for Long-Term Reliability

• Always replace the filter-drier whenever the system is opened.
• Perform a thorough evacuation to 500 microns or lower before charging.
• Use only manufacturer-approved refrigerant and oil.
• Schedule annual professional inspections that include a sight-glass check.
• Address any color change or bubbling promptly rather than waiting for performance complaints.

These practices keep the refrigerant circuit clean, dry, and correctly charged, extending equipment life and maintaining efficiency.

Interpreting Results in Context

No single indicator should be used in isolation. A clear sight glass does not guarantee perfect charge if the system is overcharged with liquid flooding the condenser. Likewise, a few bubbles during start-up may be normal as pressures equalize. Professionals therefore combine sight-glass observations with superheat, subcooling, and temperature-split measurements to reach a definitive diagnosis.

When the glass shows solid liquid and a dry moisture indicator, the technician can confidently report that the refrigerant circuit is healthy. Any deviation prompts a systematic search for the root cause rather than simple top-off charging, which only masks underlying problems.

The Value of Professional Monitoring

Homeowners rarely have the training or tools to interpret a sight glass accurately. Attempting to add refrigerant based solely on the presence of bubbles can lead to overcharge, compressor damage, and voided warranties. Certified technicians possess the knowledge to read the glass correctly, measure exact charge by weight, and address moisture or acid before secondary damage occurs.

Regular professional inspections that include a sight-glass evaluation catch developing issues while they remain inexpensive to correct. Early detection of a slow leak or rising moisture level can prevent a mid-summer breakdown and the higher repair costs that accompany emergency service.

Maintaining Confidence in Your System

A well-maintained HVAC system delivers consistent comfort and efficient operation year after year. The refrigerant sight glass serves as a quiet guardian, offering continuous visual confirmation that the heart of the system—the refrigerant circuit—remains clean, dry, and properly charged. When technicians use this tool as part of a comprehensive diagnostic routine, they protect both the equipment investment and the indoor environment it serves.

By understanding the information the sight glass provides, property owners can ask informed questions during service visits and recognize the importance of addressing visual warnings promptly. Clear liquid and a stable moisture indicator equal peace of mind.
